Main features:
1. High export pressure, able to meet the transportation requirements of high-rise buildings
2. Can pump fine aggregate concrete with a maximum aggregate particle size of 30-40mm
3. The electrical system adopts PLC control, which has the best control characteristics
4. Equipped with traction device, flexible and convenient for movement and positioning
5. The overall detachable screen mesh is easy to replace
6. The equipment is divided into motor-driven and diesel driven, and can be matched with globally guaranteed generators
Parameter Name |
Unit |
Specifications |
|

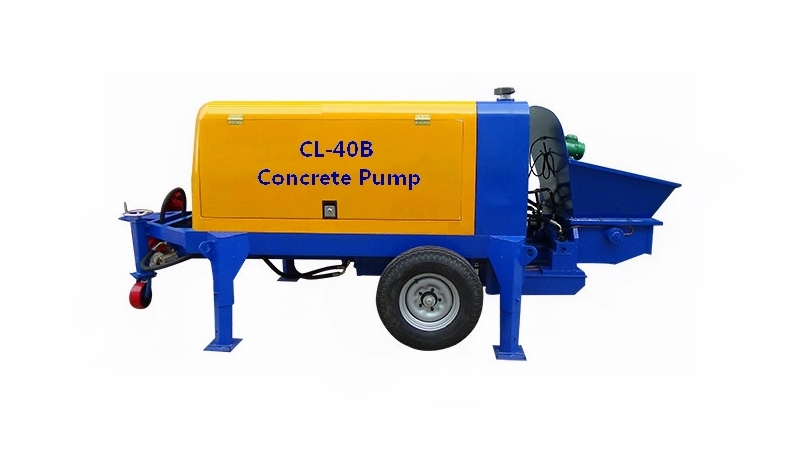

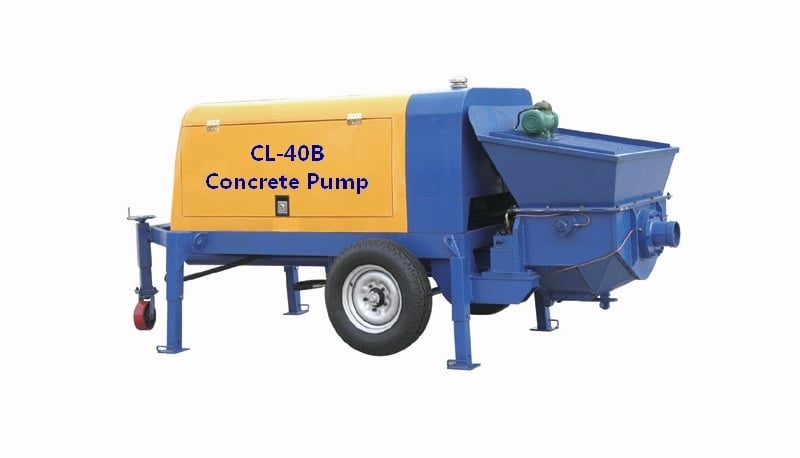

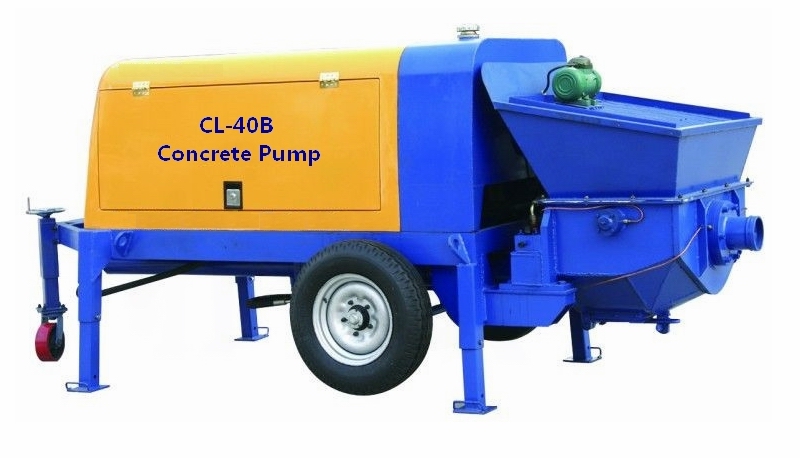

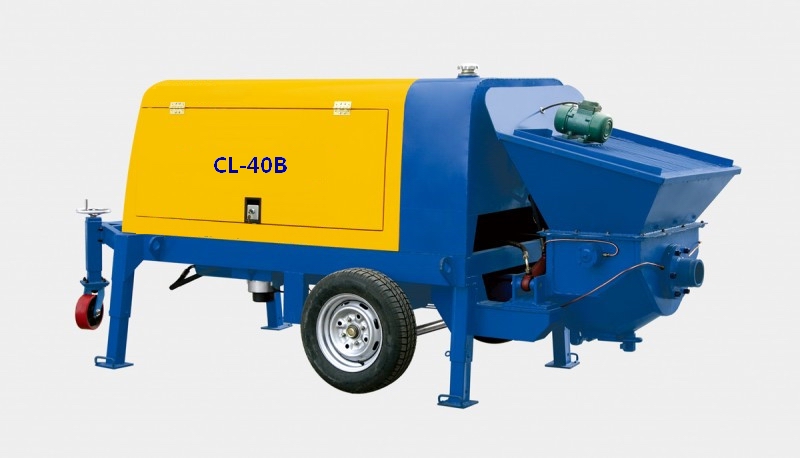

CL-40B | |||
Theoretical pumping pressure |
High pressure |
MPa |
11 |
Low pressure |
MPa |
6.5 |
|
Actual conveying volume |
High pressure small displacement |
m3/h |
24 |
Low pressure high displacement |
m3/h |
36 |
|
Conveying distance |
Horizontal |
m |
640 |
Vertical |
m |
160 |
|
Maximum aggregate particle size |
Conveying pipe diameter φ80 |
mm |
30 |
|
Conveying pipe diameter φ100 |
35 |
||
|
Conveying pipe diameter φ125 |
40 |
||
Loading height |
mm |
1100 |
|
Host motor power |
KW |
45 |
|
Host weight |
Kg |
2480 |
|
Abmessung (L * W * H) |
mm |
4350X1600X1600 |
|
Project Case：
